Piggy's design for all main ICs

Moderator: bbiernat

pancio: Administrator; Posts: 75; Joined: 18 September 2013, 23:02 - Wed; Location: SILESIA

Piggy's design for all main ICs

Quote

Post by pancio » 11 August 2018, 20:09 - Sat

Regarding fact that not everyone can or want to solder I decided to make a few piggy PCB which you can use inside your Atari in order to connect any other device/interface. At first I prepared PCB for CPU but don't worry, I'll provide for the others as well.

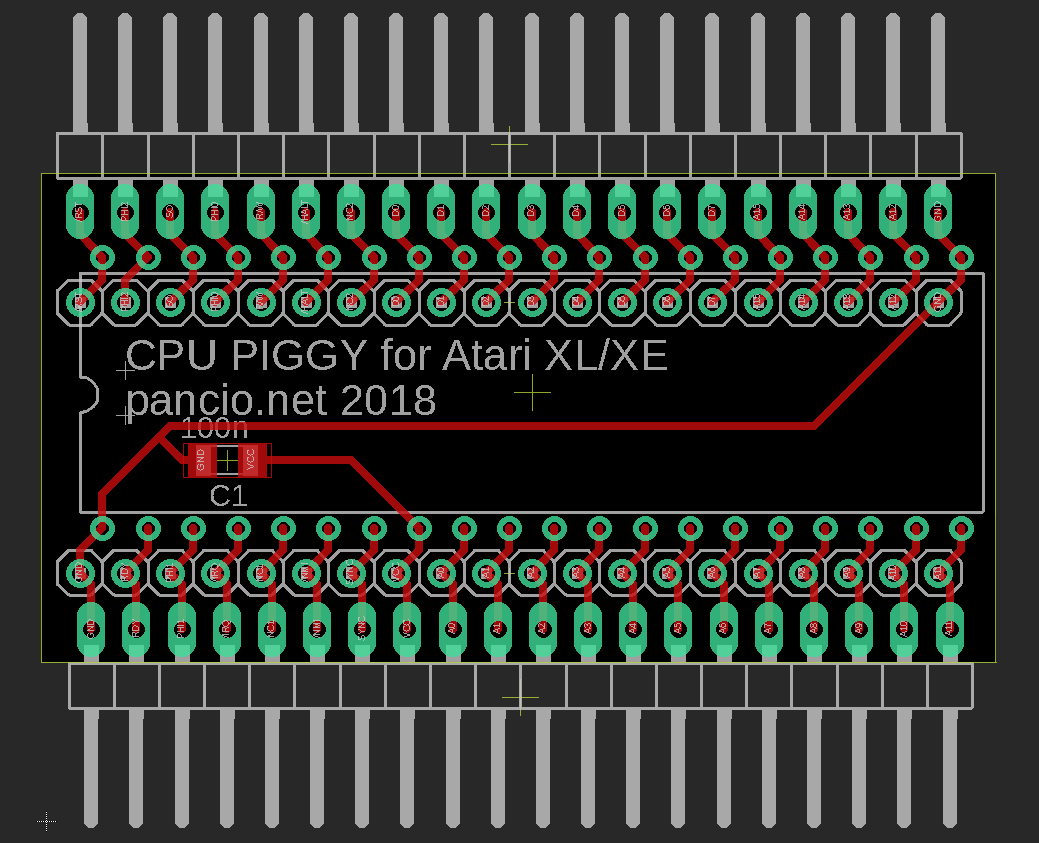

: Piggy PCB for CPU 6502C; piggy_cpu.png (26.53 KiB) Viewed 135957 times

Attachments

Piggy_CPU6502C.zip: (36.54 KiB) Downloaded 6895 times
